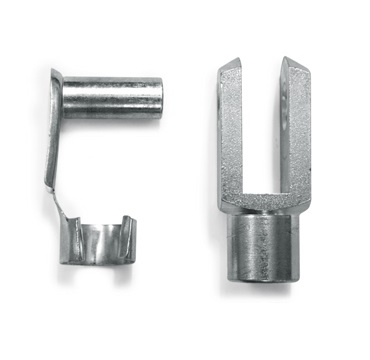

Steel clevis for the easy installation of the tension load cells. In combination with the RBJ rod-end ball joints, they allow you the correct alignment of the suspended load.
TECHNICAL FEATURES
- Material: galvanized steel.
- Easy to install.
- Fitted with threaded bush for an easy installation to the supporting system.
- Locking pin fitted as a standard, with a quick locking/unlocking system.
Code | Description | |
![]() |
CLVM8 | M8 clevis fitted with pin, for combination with RBJM8. For STG100 and SL capacity up to 50kg. |
![]() |
CLVM12 | M12 clevis fitted with pin, for combination with RBJM12. For STG500, STG1000 and SL capacity from 100 to 1000kg. |
![]() |
CLVM16 | M16 clevis fitted with pin, for combination with RBJM16. For STFC2000 and STU2000-1k. |
![]() |
CLVM24 | M24 clevis fitted with pin, for combination with RBJM24. For STFC5000 and STFC10000. |
