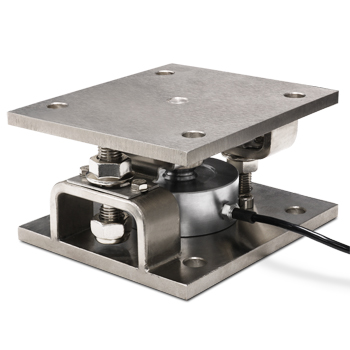

Mounting kit for compression load cells series CPX up to 12.500kg and CPA up to 10.000kg, suitable for silos, tanks and hoppers weighing
– Self-centering connection segment between lower and upper plates
– Protection against electrostatic charges
– Anti-overturn system.
– Blocking system for an easy maintenant and a safe shipment
- NICKEL-PLATED STEEL BODY.
- GREAT RESISTANCE TO LATERAL FORCES.
- NUTS FOR MAINTAINING THE RAISED POSITION, FOR EASY INSTALLATION AND/OR SUBSTITUTION OF THE LOAD CELL.
- LIMIT-SWITCH NUTS FOR PROTECTION OF THE LOAD CELLS IN CASE OF OVERLOAD.
- SELF-CENTERING CONNECTION SEGMENT BETWEEN LOWER AND UPPER PLATES.
- DUMMY LOAD CELLS FUNCTIONING FOR THE WEIGHING OF LIQUIDS.
- The KCPNA kit is designed to allow the correct functioning of the cells and the requested weighing accuracy, within the limits described into the technical manual.
