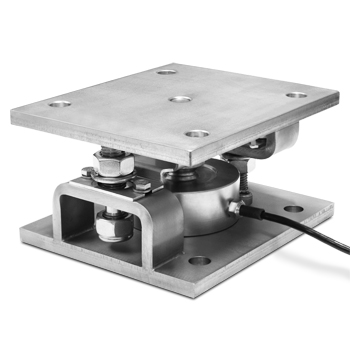

Mounting kits for compression load cells CPX series up to 100,000kg and CPA up to 10,000kg, suitable for weighing silos, tanks, hoppers of big size.
ADVANTAGES:
– Body in STAINLESS steel AISI 304.
– Centering plate.
– Protection against electrostatic discharges.
– Anti-overturn system.
– Locking/bypass system for facilitated transport and maintenance.
– ATEX version available for zones 1&21, 2&22.
MAIN FEATURES
- AISI304 STAINLESS STEEL BODY.
- GREAT RESISTANCE TO LATERAL FORCES.
- NUT FOR MAINTAINING THE RAISED POSITION, FOR EASY INSTALLATION AND/OR SUBSTITUTION OF THE LOAD CELL.
- LIMIT-SWITCH NUTS FOR PROTECTION OF THE LOAD CELLS IN CASE OF OVERLOAD.
- SELF-CENTERING CONNECTION SEGMENT BETWEEN LOWER AND UPPER PLATES.
- DUMMY LOAD CELLS FUNCTIONING FOR THE WEIGHING OF LIQUIDS.
- The KCPN kit is designed to allow the correct functioning of the cells and the requested weighing accuracy, within the limits described into the technical manual.
