Popis

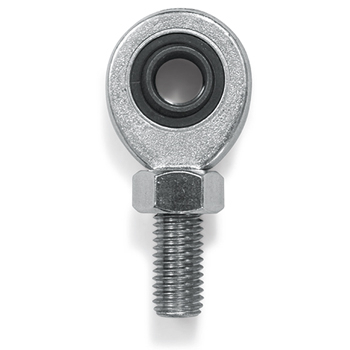

Articulated joints for the correct installation of the tension load cells.
MAIN FEATURES
- Galvanized steel construction.
- Steel / Bronze contact surfaces of the joint.
- Fitted with locking nut.
Code | Description | |
![]() |
RBJM8 | M8 articulated rod-end ball joint. Maximum lifting capacity of 600kg. For STG100 and SL up to 50kg capacity. |
![]() |
RBJM12 | M12 articulated rod-end ball joint. Maximum lifting capacity of 1000kg. For STG500, STG1000 and SL capacity from 100 to 1000kg. |
![]() |
RBJM16 | M16 articulated rod-end ball joint. Maximum lifting capacity of 2000kg. For STFC2000 and STU2000-1K. |
![]() |
RBJM24 | M24 articulated rod-end ball joint. Maximum lifting capacity of 5000kg. For STFC5000 and STFC10000. |
