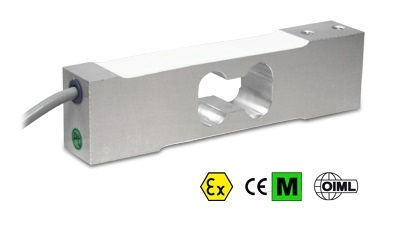

MAIN FEATURES
-
- C3 PRECISION CLASS
- OFF CENTER LOAD COMPENSATED
- ALUMINIUM ALLOY CONSTRUCTION
- IP67 PROTECTION
- MAX. CAPACITIES FROM 10 TO 200 kg
- FOR PLATFORMS WITH DIMENSIONS UP TO 600 X 600 mm
- SHIELDED CONNECTION CABLE
- OIML CERTIFICATE AVAILABLE UPON REQUEST
- TEST CERTIFICATE AVAILABLE UPON REQUEST
TECHNICAL FEATURES
-
- Minimum load cell verification interval:
Vmin = EMax / 10.000-15.000 - Maximum number of verification intervals: nLC = 3000
- Sensitivity: 2mV/V ± 10%
- Temperature effect on zero:
from ±0,0093% F.S./10K to ±0,0140% F.S./10K - Temperature effect on Full Span:
0,011% F.S./10K (-10°C/+20°C) 0,017% F.S./10K (+20°C/+40°C) - Compensated Temperature Range: -10°C/+40°C
- Operating Temperature Range: -10°C/+50°C
- Maximum excitation voltage without damage: 15 Vdc
- Input Resistance: 300..500 Ohm
- Output Resistance: 300..500 Ohm
- Zero Balance: 0 ± 0,12 mV/V (at 100 V)
- Insulation Resistance: >2000 MOhm
- Mechanical limit load in service: 150% F.S.
- Destructive load: 300% F.S.
- Deflection at nominal load <0,5mm
- 6-wire shielded cable, 3m long, 4,7mm diameter
